Home > Products > Plastic Chair > Plastic chair injection molding machine

Plastic chair injection molding machine

  • Plastic chair injection molding machine
  • Plastic chair injection molding machine

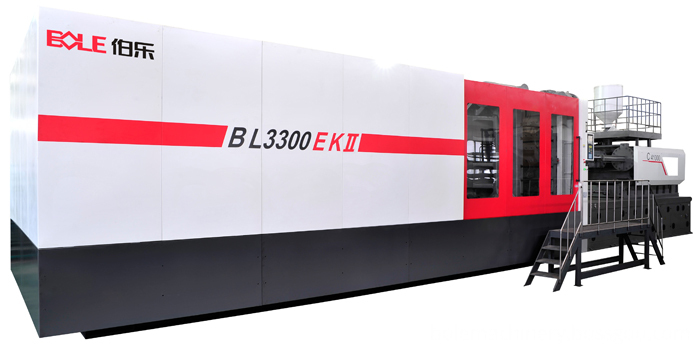

Plastic chair injection molding machine

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: standard export packing
    Brand: Bole Machinery
    Transportation: Ocean
    Place of Origin: Zhejiang, China

Basic Info

Model No.: BL3300EKH

Product Description

Plastic Chair injection molding machine

1. BOLE centre clamping structure

Since the new "national initiative, central lock mode" EKII series of market has, Bole brand presses in recent years yearly sales steadily increased significantly. In new product technology leading strategy under the guidance of the thoughts, Bole injection molding machine compared with peers, has obvious advantages: source in the center of design patent locking mold configuration, Bole presses the production of product precision is higher than peers, compared with peers, the products there is no flash, or Flash significantly reduced; Bole presses can help users save 2-5% of plastic raw materials.

injection mold machines

2. Product Instructions

plastic chair injection molding machine



Bole injection mold machines


EKH系列技术参数表 UNIT BL3300EKH/C72000 BL3300EKH/C94000
国际标准规格 International specification C72000 C94000
螺杆直径 Screw diameter Screw specifications A B A B
mm 215 240 240 260
螺杆长径比 Screw L/D ratio 23 20.5 23 21
理论注射容积 Theoretical injection capacity cm3 49350 61494 64207 75354
注射量
(以PS计)
Shot weight(PS) g 45402 56574 59070 69325
oz 1604.3 1999.1 2087.3 2449.7
最大对空注射速率 Injection rate into Air cm^3/s 2830 3526 3113 3654
最大对空注射速率 g/S 2575 3208 2833 3325
注射压力 Injection pressure MPa 147 118 146 125
理论塑化速度 Theoretical plasticizing speed g/S (PS) 481 626 626 764
注射行程 Injection stroke mm 1360 1420
最大注射速度 Max. injection speed mm/s 69 69
最大螺杆转速 Screw speed r/min 63 63
系统压力 Sys. Pressure MPa 17.5 17.5
电机总功率 Pump Motor(Min~Max) kW 200.8~202.8 251~253.5
电机数量 number of Motors PCS 4 5
预塑电机功率 (1850-4000吨标配) Pre-plastic motor power 314 314
电热功率 Heater power kW 233 233
温控区数 Number of temp. control zones 8+1 8+1
锁模力 Clamping force kN 33000
开模行程 Opening stroke mm 2200
拉杆内间距 Space between tie bar mm x mm 2110×1910
最小模具厚度(T型槽) Min. mould height mm 950
最大模具厚度(T型槽) Max. mould height mm 2000
最大模板距离(T型槽) Max. Daylight mm 4200
顶出行程 Ejector stroke mm 550
顶出力 Ejector force forward kN 618
顶针回缩力 Ejector force back kN 483
顶出杆数 Number of ejector bar PC 25
干循环时间 Dry Cycle Time S 13.0 12.5
能耗(注1) Energy consumption level kW.h/kg ≤0.4(1级) ≤0.4(1级)
料斗容积 Hopper capacity kg 400
油箱容量 Oil tank capacity L 2500 3000
机械外形尺寸(约) Machine dimensions(L×W×H) m x m x m 20.4x5x5.1 21.2x5x5.1
机器重量(约) Machine weight Ton 255 265

3. Clients Cases

plastic chair injection molding machineinjection mould machines


injection mould machines

4. Bole Competitive Philosophy

Leading technology and performance

China unique producer, central locking toggle

CIML carbon-fiber products intelligent moulding line, made for lightweight of automobile

The performance of Electro- hydraulic hybrid two platen machine has reached the leading level

5. The world`s leading processing equipment

mould machines

Bole injection machine

moulding machine

BOLE INTELLIGENT MACHINERY CO., LTD

  • 1
  • 2
  • 3
  • 4
  • 5



BOLE Machinery (hereinafter referred to as [BOLE") was founded in 1998. As a subsidiary of CHENGLU group, BOLE is a high-tech enterprises that focus on the research, development and manufacture of precision machinery equipment. It adopts the mode of [technology from Germany, made in China", integrates design, manufacture, assembly, testing and sales, and provides complete and professional injection moulding devices for customers. BOLE injection moulding machines are developed and directed by German experts. The range of products covers nearly 100 specifications and 6 main series, including high-precision Two-Platen DK series, hydraulic servo EK-S series, full-electric FE series, carbon-fiber products intelligent moulding line CIML series, high-speed HK series and multi-materials injection MK series. The range of clamping force is from 70 ton to 6800 ton, and the range of injection weight is from 65g to 60000g.

As a latecomer in China`s injection moulding machine market, BOLE keeps competing with other brands, and wins the trust from customers with high-performance and high-stability product as well as customized service. So far, BOLE injection moulding machines have been sold and exported to more than 70 countries. Especially in the last three years, the developed countries in America and Europe have grown into the main markets of BOLE.

BOLE proposes a comprehensive strategic partnership with the well-known household appliances enterprises including GREE, TCL, AUX, etc. Meanwhile, BOLE plays an important role in Auto industry and builds a strategic cooperation with famous auto-part suppliers including Ningbo HuaXiang Group, Germany Adler Pelzer Group, etc. So far BOLE has entered the supporting systems of Auto-part manufacturers and suppliers including Beijing Benz, Shenyang Huachen BMW, China FAW Group, Shanghai Volkswagen, Shanghai General Motors, Geely Automobile, etc.

In the future BOLE will take intelligence, efficiency, precision and energy saving as the direction of innovation and development, and concentrate on improving the core competitiveness of customers. Besides, BOLE will also continue to advance the path integrated by Hi-Tech industry development, professional production and perfect sales, and establish a sustainable modern high-tech brand.

[BOLE Story]

2020 Successfully developed high-speed packaging machine, to create Bole Jiangxi Industrial Area

2019 Successfully developed optical machine, tie machine, and have been put into the market.

2018 R&D succeeded on well-built MK series.

2017 Joined China plastics processing industry association (CPPIA) and became the governing unit; R&D success on the next generation of EK-S series.

2016 Launched servo energy-saving injection moulding machine EKII series.

2015 The team led by a senior German expert, developed world-leading Two-platen machine DK series successfully; Carbon-fiber products intelligent moulding line CIML series was developed and launched; became No.1 on the growth rate of China's plastics industries; established a Strategic cooperation with Gree Electric Appliances Inc.

2014 Became the Top 25 enterprise of comprehensive strength among China`s plastic machinery industry; became the Top 10 among injection moulding machine enterprises in China.

2012 Large-volume injection moulding machine was developed.

2011 BOLE entered the rapid development stage, and Central Locking Structure of EK series was awarded the national patent. ( Patent No.ZL201110250342.5 )

2010 The third generation super-energy-saving servo precision injection molding machine EK series was developed and launched totally with cost effectiveness, outer-crank-shaft mechanism and larger parameters; BOLE`s scientific research bases were established for servo energy-saving project in Chinese Academy of Sciences (CAS) and Nanjing University of Aeronautics and Astronautics (NUAA).

2009 Launched small and medium-sized injection molding machines of EK series successfully; The Malaysian factory was completed and put into operation; Bole developed rapidly on transnational operation.

2008 Invested 130 million RMB, Introduced top talent from abroad, and developed successfully EK series injection moulding machine with central locking mechanism.

2007 CHENGLU Group wholly owned SHUANGMA Machinery, and invested 300 million RMB to build BOLE industrial park.

2006 Awarded Nation High-tech Enterprise by the ministry of science and technology.

2005 Energy-saving servo system was developed with proprietary intellectual property rights, and the first set of super energy-saving servo injection moulding machine was produced.

2004 undertook the national 863 scientific research project, and built provincial engineering (technology) center.

2003 listed as the Chinese Injection Molding Machine Characteristic Industrial Base.

2002 Thousand-ton-level injection moulding machine was developed with proprietary intellectual property rights.

1998 Ningbo shuangma machinery industry co. LTD. Was established.
